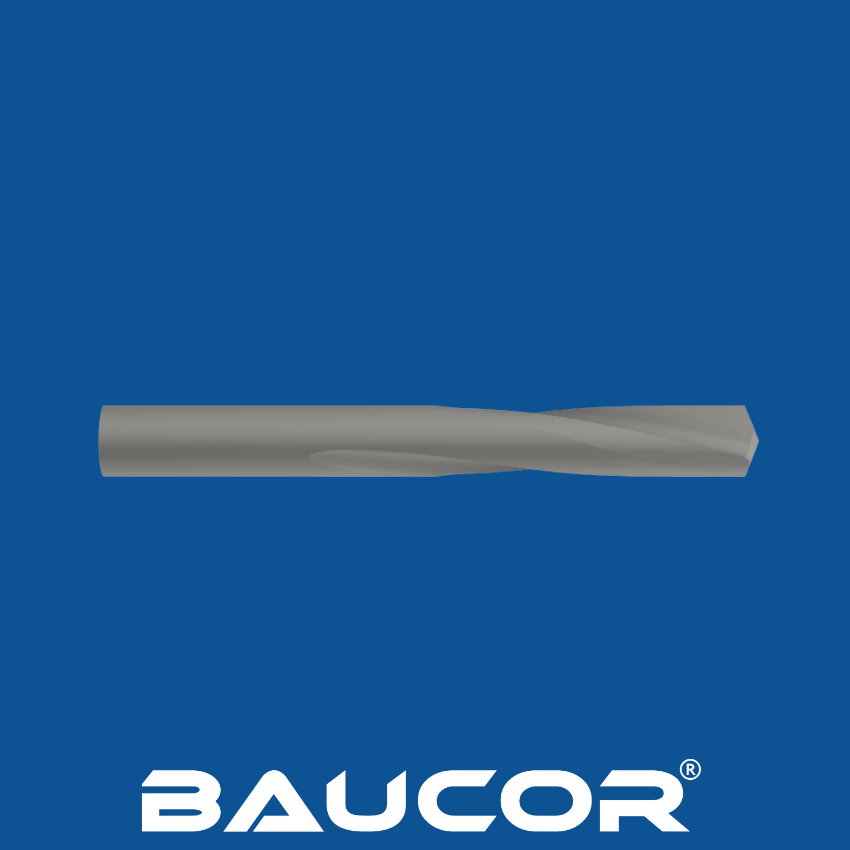

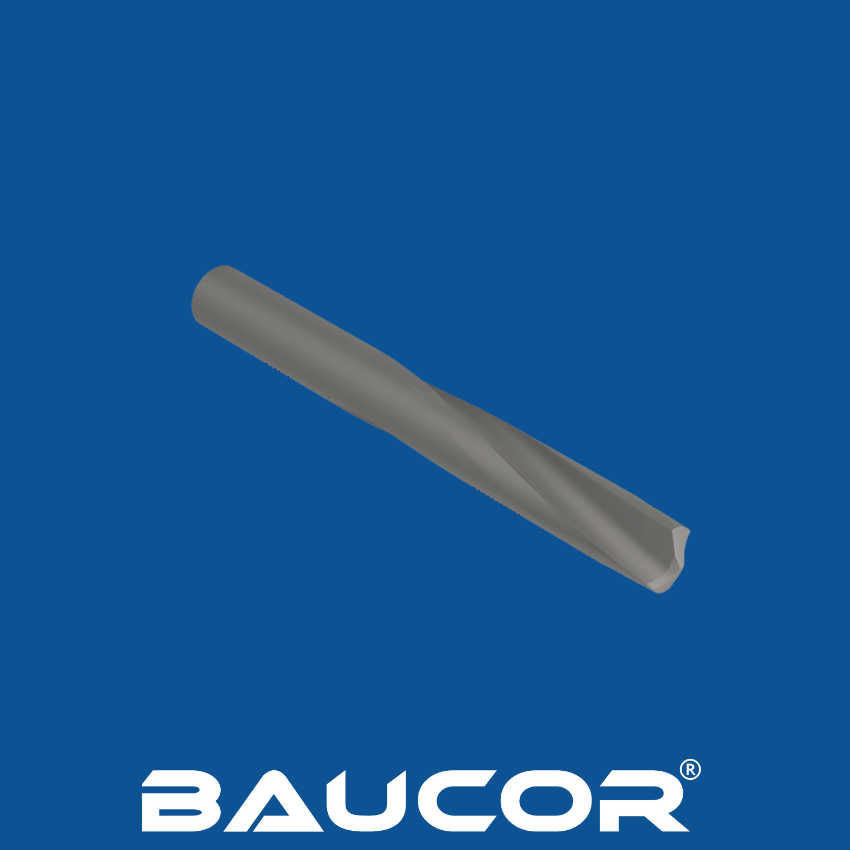

What is a Screw Machine Length Drills Bit? How does it work?

Screw machine length drill bits, also known as stub-length drill bits, are shorter versions of standard jobber length drills. Here's a breakdown of their characteristics and how they function:

Defining Features:

  • Reduced Length: The defining characteristic of screw machine length drills is their shorter overall length compared to jobber length drills. This increased rigidity is advantageous in specific scenarios.
  • Compatibility: Like jobber length drills, screw machine drills often feature straight shanks for compatibility with standard drill chucks.

How Screw Machine Length Drill Bits Work

The basic principle of operation for screw machine length drills is the same as any drill bit:

  1. Rotation: The drill bit is secured in a compatible chuck or spindle and rotates at high speed.
  2. Cutting Action: Cutting edges at the drill bit's tip remove material as the drill bit penetrates the workpiece, creating a hole.
  3. Chip Evacuation: Flutes (spiral grooves) on the drill bit guide chips produced during drilling away from the cutting area and out of the drilled hole.

Why Choose a Screw Machine Length Drill?

Screw machine length drills offer specific advantages due to their shorter length:

  • Increased Rigidity: Their shorter design provides greater rigidity, reducing deflection and improving accuracy, especially when drilling harder materials or smaller diameter holes.
  • Compact Applications: They are well-suited for scenarios where drilling space is limited, enabling access to confined areas.
  • Automatic Screw Machines: These drills were initially designed for use in automatic screw machines, where their shorter length and rigidity were advantageous for mass production.

Considerations:

  • Reduced Drilling Depth: The shorter length limits the drilling depth compared to jobber-length drills.
  • Chip Evacuation: The reduced flute length might affect chip evacuation efficiency in certain deep-hole drilling scenarios.

How are Screw Machine Length Drills Bits manufactured?

The manufacturing process for screw machine length drill bits is similar to that of jobber length drills, with some adjustments due to their shorter length. Here's a general overview of the typical steps:

1. Raw Material Selection:

  • Material Matters: High-speed steel (HSS) is the most common material, but cobalt steel, tool steel alloys, or carbide options exist for demanding applications. Baucor can advise on the optimal material for your specific needs.

2. Blank Formation:

  • Shaping the Base: The raw material is cut and shaped to create blanks with a slightly larger size than the final drill bit dimensions to allow for subsequent steps.

3. Fluting and Point Grinding:

  • Creating Key Features: Specialized grinding equipment forms the flutes (spiral grooves) essential for chip evacuation. Simultaneously, the drill's tip is ground to create the desired point angle and cutting edges. Baucor's expertise in precision grinding processes would be crucial here.

4. Heat Treatment:

  • Enhancing Strength: Many HSS and tool steel alloys undergo heat treatment processes to improve their hardness, wear resistance, and overall durability. Baucor's proficiency in heat treatment optimization could ensure maximum drill performance.

5. Coating (Optional):

  • Performance Boost: In some cases, screw machine length drill bits might receive coatings like TiN, TiAlN, or others to further enhance wear resistance, reduce friction, and extend tool life. Baucor's knowledge of drill coatings is a potential asset.

6. Finishing and Inspection:

  • Polishing and Quality Checks: The finished drill bits may receive surface treatments to improve smoothness and reduce friction. Rigorous inspections ensure they meet dimensional tolerances and perform as intended.

Baucor: Your Potential Partner in Screw Machine Length Drill Manufacturing

Understanding the manufacturing process gives you insights into the potential for quality and customization with screw machine length drills. Here's why consulting us can be beneficial:

  • Material Expertise: Get guidance on the most suitable material for your specific application and workpiece.
  • Precision Manufacturing: Baucor's focus on precision ensures your screw machine length drills are crafted with tight tolerances for consistent performance.

Custom Solutions: If your application demands a unique design or specialized material, Baucor manufactures custom screw machine length drills tailored to your exact needs.

GET A QUOTE

What sizes does Baucor manufacture Screw Machine Length Drills Bits ?

Possible Screw Machine Length Drill Sizes:

  • Fractional Sizes:
  • Common: 1/16", 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2" or larger, depending on specific offerings.
  • Smaller increments or larger sizes might be available based on Baucor's inventory or custom manufacturing capabilities.
  • Metric Sizes:
  • Common: 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, or larger.
  • Baucor could potentially offer decimal increments or sizes beyond this standard range.

Baucor can manufacture drill bits for you ranging from very small sizes like 0.05 mm to large sizes up to 180 mm, accommodating a wide spectrum of drilling requirements. Please contact us for the appropriate dimensions. Baucor can produce drill bits in the most specialized sizes tailored to your needs.

What materials are used to make Screw Machine Length Drills Bits?

The optimal material for a screw machine length drill bit depends on the specific application and the workpiece material being drilled. Here's a breakdown of possible options, including those for both common and more specialized drilling tasks:

Common Materials:

  • High-Speed Steel (HSS): A versatile choice for screw machine length drills. HSS offers a balance of affordability, hardness, and wear resistance, making it suitable for various materials like wood, plastics, and softer metals.
  • Cobalt Steel (HSCO): An upgrade from HSS, containing cobalt for improved wear resistance and heat tolerance. Well-suited for drilling tougher materials like stainless steel and high-strength alloys.

Specialty Materials:

  • Tool Steel Alloys: A broad category of specialty steels formulated for specific cutting tool applications. Baucor might offer screw machine length drills made from tool steel alloys optimized for enhanced wear resistance, toughness, or other desired properties.
  • Carbide: Incredibly hard and wear-resistant. Ideal for drilling highly abrasive materials or when extended tool life is crucial. Might be offered by Baucor for demanding applications requiring screw machine length drills.
  • Powdered Metal: Some manufacturers utilize powdered metallurgy techniques to create high-performance tool steels with enhanced properties. Baucor might offer custom screw machine length drills made from these powdered metal alloys.
  • Diamond-Coated Drills: Not as common as other materials, but Baucor might offer them for specialized tasks involving exceptionally hard materials like glass, ceramics, or composites.

What coatings improve Screw Machine Length Drills Bits?

Due to their shorter length and increased rigidity, screw machine length drill bits find use in various scenarios where standard length drills might not be optimal. Here are some common areas where they are used:

Precision Drilling:

  • Confined Spaces: Their compact size is advantageous for drilling in tight spaces or areas with limited access.
  • Hard Materials: The increased rigidity of screw machine length drills helps maintain accuracy and minimize deflection when drilling harder materials.
  • Small-Diameter Holes: They offer better control and reduced breakage risk when creating smaller diameter holes.

Manufacturing and Production:

  • Automatic Screw Machines: These drills were initially designed for use in automatic screw machines, where their rigidity and shorter length improved efficiency and accuracy in high-volume production.
  • CNC Machining: Used in CNC machines for precision drilling tasks where the shorter length can improve tool clearance and part accessibility.
  • Jigs and Fixtures: Their rigidity makes them suitable for drilling accurate holes in jigs and fixtures used in manufacturing processes.

Additional Applications

  • Metalworking: Drilling into various metals where precision and rigidity are important.
  • Plastics and Composites: For creating accurate holes in plastics, acrylics, and other composite materials.
  • Woodworking: While less common in woodworking, they can be used on harder woods or applications requiring high precision.

When Standard Drills Might Be Better Suited:

In applications where deeper hole drilling is required, standard jobber length drills or longer aircraft drills would be necessary.

GET A QUOTE

Where are Screw Machine Length Drills Bits used?

Due to their shorter length and increased rigidity, screw machine length drill bits find use in various scenarios where standard length drills might not be optimal. Here are some common areas where they are used:

Precision Drilling:

  • Confined Spaces: Their compact size is advantageous for drilling in tight spaces or areas with limited access.
  • Hard Materials: The increased rigidity of screw machine length drills helps maintain accuracy and minimize deflection when drilling harder materials.
  • Small-Diameter Holes: They offer better control and reduced breakage risk when creating smaller diameter holes.

Manufacturing and Production:

  • Automatic Screw Machines: These drills were initially designed for use in automatic screw machines, where their rigidity and shorter length improved efficiency and accuracy in high-volume production.
  • CNC Machining: Used in CNC machines for precision drilling tasks where the shorter length can improve tool clearance and part accessibility.
  • Jigs and Fixtures: Their rigidity makes them suitable for drilling accurate holes in jigs and fixtures used in manufacturing processes.

Additional Applications

  • Metalworking: Drilling into various metals where precision and rigidity are important.
  • Plastics and Composites: For creating accurate holes in plastics, acrylics, and other composite materials.
  • Woodworking: While less common in woodworking, they can be used on harder woods or applications requiring high precision.

When Standard Drills Might Be Better Suited:

In applications where deeper hole drilling is required, standard jobber length drills or longer aircraft drills would be necessary.

Which industries use Screw Machine Length Drills Bits ?

Industries Where Screw Machine Length Drill Bits are Essential

  • Manufacturing: A cornerstone of various manufacturing processes – drilling holes for assembly, fasteners, components, jigs, and fixtures. The focus on precision and potential for custom materials from a supplier like Baucor aligns well with the diverse needs of the manufacturing sector.
  • Precision Machining: Used in CNC machines and other precision machining applications where accuracy, tight tolerances, and drilling in confined spaces are crucial. Baucor can advise on optimal drill material choice (HSS, cobalt, etc.) for the specific metals or alloys being machined.
  • Automotive: Utilized within the automotive industry for precision drilling tasks during manufacturing, repair, and customization.
  • Aerospace: While less common than longer drill types, they may be used in specific aerospace applications where their compact size and rigidity are advantageous. Baucor's potential for high-performance drill materials and coatings can be an asset in this demanding industry.
  • Metal Fabrication: Creating holes in various metals for fabrication, assembly, and structural components where precision is important.
  • Electronics Manufacturing: For drilling precise holes in printed circuit boards (PCBs) and component casings. Baucor's expertise in advanced material selection and coatings might be of value here.

Additional Industries and Applications:

  • Medical Device Manufacturing: In specific applications where their size and precision are suitable.
  • Hobby and Craft: Utilized by hobbyists and crafters for precision drilling in various small-scale projects.

When Standard Drills Might Be Preferred

Industries or applications requiring deeper hole drilling would typically necessitate standard jobber length drills or specialized aircraft drills with longer flute lengths.

What machines use Screw Machine Length Drills Bits?

The compact size and rigidity of screw machine length drill bits make them suitable for various drilling machines. These include:

  • CNC Machining Centers: These computer-controlled machines offer precise positioning and automated drilling with screw machine length drills. They're ideal for demanding applications requiring high accuracy and consistency.
  • Drill Presses:
  • Benchtop: Small and versatile for precision drilling in workshops or DIY projects.
  • Floor Standing: Offer more power and drilling capacity, accommodating screw machine length drills for heavier-duty tasks.
  • Handheld Drills: Both corded and cordless handheld drills can use screw machine length drill bits when precision and portability are needed.
  • Automatic Screw Machines: As their name suggests, these specialized machines were initially designed around the use of screw machine length drills for high-volume production.
  • Lathes: While primarily used for turning operations, lathes can incorporate tailstock chucks for drilling holes on-center with screw machine length drills.
  • Milling Machines: In specific setups, milling machines can be used for drilling operations with screw machine length drills.

Factors Influencing Machine and Drill Choice

While screw machine length drills can be used on various machines, specific factors guide the ideal combination:

  • Material: Harder materials might necessitate machines with more power (heavy-duty drill presses, CNC machines) and specialized drill materials (cobalt, carbide).
  • Hole Size and Depth: The desired hole diameter and depth influence the required machine capacity and choice of drill size. For deeper holes, standard jobber length drills might be needed.
  • Precision Requirements: High-precision applications might demand CNC machines for accurate positioning and consistent drilling results.

Baucor: Your Partner for Drilling Solutions

While the machines listed above are the most common to use with screw machine length drills, understanding your project needs is key. Here's how partnering with us can ensure you have the right tools for the job:

  • Machine Compatibility: Our team can ensure the selected drill is compatible with your drilling machine's chuck size and capabilities.
  • Application-Specific Guidance: Our  expertise can help you match the drill material, size, and any coatings to your specific application and machine setup.
  • Customization Possibilities: In unique scenarios, Baucor manufactures custom screw machine length drills tailored to your specific machine and drilling requirements.

What design and engineering support does Baucor provide for Screw Machine Length Drills Bits?

At Baucor, we believe that even screw machine length drills can be optimized for exceptional performance. We go beyond simply offering standard options, focusing on design and engineering excellence to ensure you have the perfect drill tailored to your specific needs.

Expertise in Drill Optimization

  • Material Selection: Our team will guide you in choosing the most suitable drill material, such as HSS, cobalt steel, tool steel alloys, or carbide, based on your drilling material, performance goals, and budget.
  • Coating Recommendations: We'll suggest appropriate coatings like TiN, TiAlN, CrN, or DLC to enhance drill performance, wear resistance, and lifespan according to your application requirements.
  • Geometry Refinements: In specific cases, we can optimize flute design, point angle, or web thickness in standard screw machine length drills to improve performance for your specialized applications.

Addressing Unique Challenges

  • Application Analysis: Our engineers will work closely with you to understand your specific drilling requirements, identifying any challenges where a standard screw machine length drill might not be the best solution.
  • Customization Possibilities: If your project demands a unique drill configuration, our design and engineering team can explore custom screw machine length drill solutions, tailored precisely to your needs.

Engineering Support Throughout the Process

  • Simulation and Analysis: We use specialized software to simulate drilling forces and optimize the design of your custom screw machine length drill for exceptional performance.
  • Prototyping and Testing: Depending on the complexity of your project, we can create prototypes for rigorous testing and validation before finalizing the design of your custom drill.
  • Quality Manufacturing Processes: Our commitment to quality ensures your custom screw machine length drills are manufactured to the highest standards for exceptional performance and durability.

Benefits of Baucor's Design and Engineering Support

  • Enhanced Drilling Performance: A custom-designed screw machine length drill can significantly improve drilling efficiency, accuracy, and tool life compared to a generic option.
  • Reduced Production Costs: By optimizing the drilling process with a customized drill, we can help you achieve long-term cost savings through improved efficiency and extended tool life.
  • Solutions for Demanding Applications: If you have a specialized drilling task that standard drills can't handle, our design and engineering expertise can help you overcome those challenges.

Contact Baucor Today!

Experience the difference that design optimization can make in your drilling operations. Explore our expertise and potential custom solutions for screw machine length drills. Our team is ready to discuss your project requirements and guide you toward the perfect drilling tool for superior results.

UNMATCHED ENGINEERING SUPPORT

Your Solution, Your Scale

Whether you need a single prototype or full-scale production, BAUCOR''s engineers are ready to collaborate with you. Contact us to discuss how we can bring your concept to life.

Tailored Solutions for BAUCOR Customers

BAUCOR specializes in providing unique manufacturing and engineering solutions designed to meet the specific needs of each client. Our expertise covers a wide range of industries and applications.

 What are the design guides for Screw Machine Length Drills Bits?

Screw Machine Length (SML) Drill Bits are designed for specific applications and have unique design characteristics compared to standard twist drills. Here are the key design guides for SML drill bits:

Shorter Overall Length: SML drill bits have a shorter overall length than standard jobber length drill bits. This shorter length increases rigidity, reducing deflection and vibration during drilling, especially in high-speed machining operations like those performed on screw machines.

Thicker Web: The web of an SML drill bit, the central portion between the flutes, is often thicker than that of standard drill bits. This added thickness provides more strength and durability, which is important for the high-speed and repetitive drilling tasks SML bits are typically used for.

Stronger Point: SML drill bits generally have a stronger point design, such as a split point or a self-centering point. This helps to improve drilling accuracy, reduce wandering, and prevent work hardening of the material being drilled.

Flute Geometry: The flute geometry of SML drill bits is optimized for efficient chip evacuation, ensuring that chips are removed quickly and effectively during drilling. This helps to prevent chip buildup, which can cause heat buildup and damage the drill bit or workpiece.

Material Selection: SML drill bits are typically made from high-speed steel (HSS) or cobalt steel, materials known for their hardness, wear resistance, and ability to withstand high temperatures. Some SML bits may also be coated with titanium nitride (TiN) or other coatings to further enhance their performance and longevity.

Common Applications: SML drill bits are primarily designed for use in screw machines, where they are used for high-speed, repetitive drilling operations. They are also used in other applications where a shorter, more rigid drill bit is preferred, such as drilling in confined spaces or when working with harder materials.
